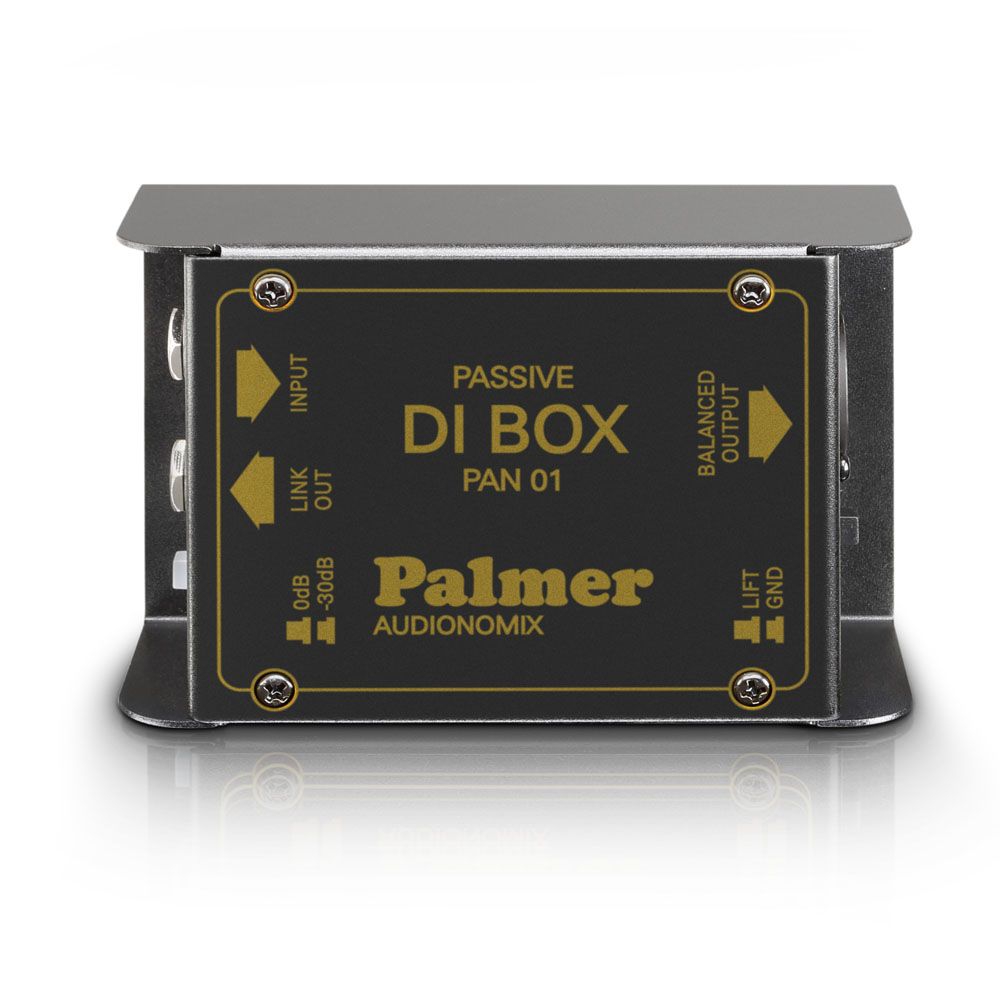

Palmer Pro Audionomix - DI-Box passiv
Produktnummer:
AHPAN01
Produktinformationen "Palmer Pro Audionomix - DI-Box passiv"
Palmer Pro Audionomix - DI-Box passiv

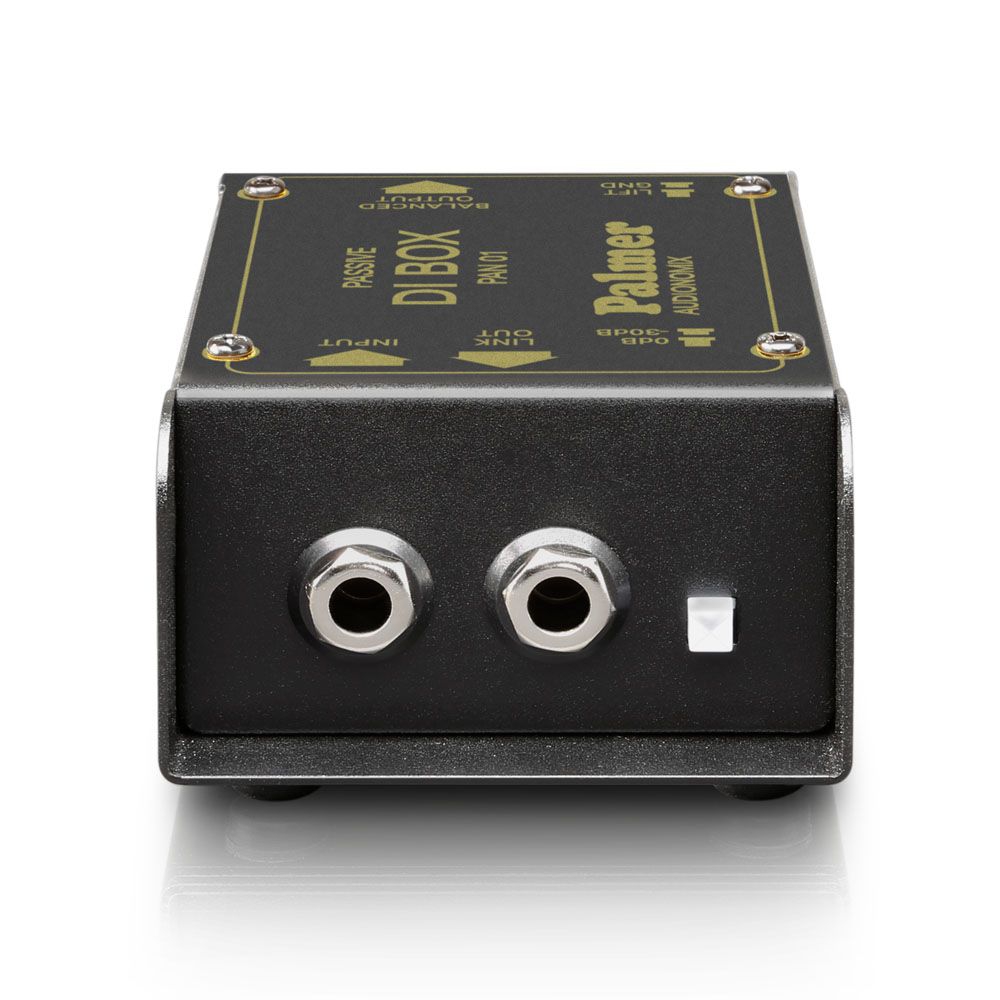

Mit dieser DI-Box können sowohl Line-, als auch Lautsprechersignalpegel verarbeitet werden. Diese kleine Box hat einen Klinkeneingang mit parallelem Ausgang zu Durchschleifen Ihres Signales.
Eigenschaften von Palmer Pro Audionomix - DI-Box passiv:

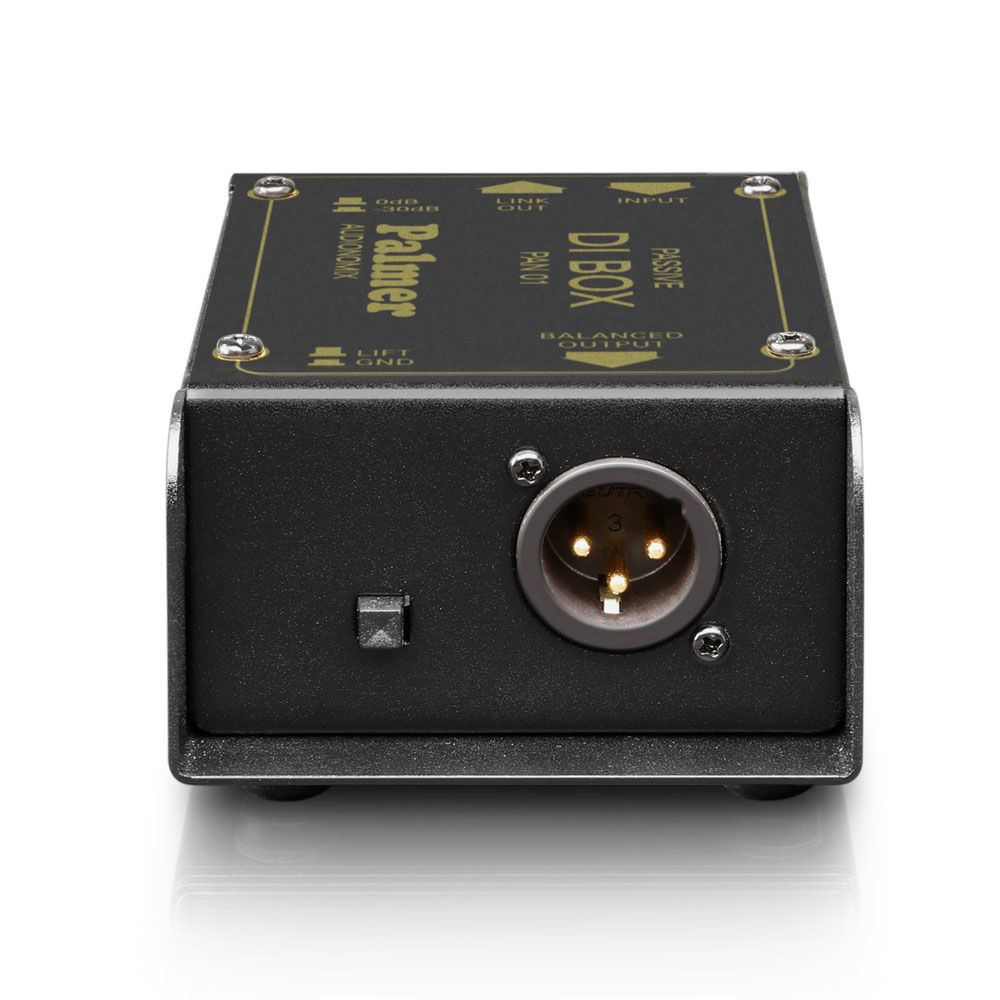

- Trafosymetric XLR Output
- Input Sensitivity Adjustable
- Input impedance: 68,000 ohms
- Output impedance: 600 ohms
- Transformer ratio: 10 : 1
- Maximum output: +6 dB
- Ground lift switch
- Metalgehäuse: 110x73x42mm
- Kanalanzahl: 1
- Passive
- Transformer balanced: Yes
- Attenuator: -30 dB
- Input/Output Gain: -20 dB
- Ground lift switch: Yes
- Max Input Level: +54 dBu
- Max Output Level: +4 dBu
- Frequency Range 2K Source Imp. -1dB: 20 Hz - 20 kHz
- Input Impedance 60Hz: 60 kΩ
- Nom. Output Impedance: 600 Ω
- Gewicht: 0,34kg
